Armattan Quads

Beaver 5" Frame Kit

Beaver 5" Frame Kit

Regular price $87.50 USD
Regular price Sale price $87.50 USD
Sale Sold out

Beaver 5" Frame Kit


Beaver Specs

Frame Weight 126 grams
Motor to Motor 235mm
Frame Shape Compressed X
Main Plate Thickness 2.5mm
Arm Thickness 5mm
Motor Mount Pattern 16x16 or 16x19 or 19x19mm

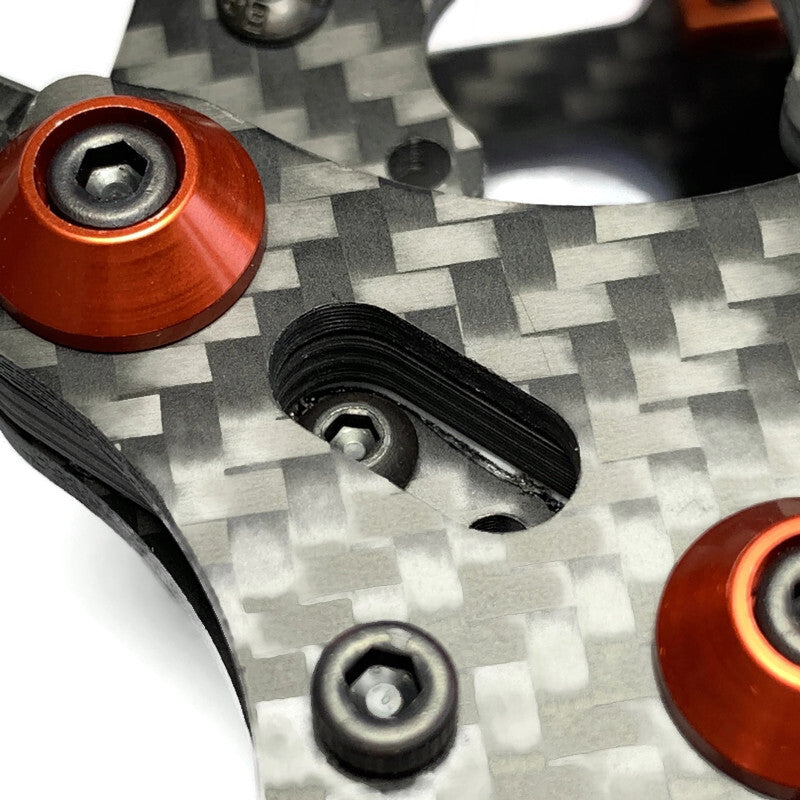

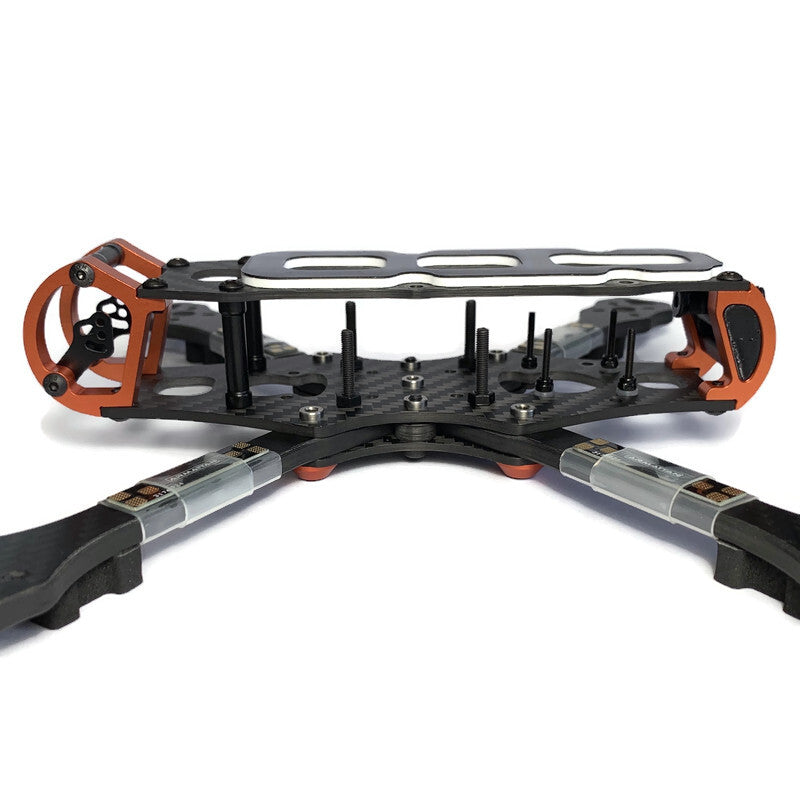

Stack Mounting Two 30.5x30.5mm stacks(center and rear)
Two 20x20mm stacks (4 possible positions)
FPV Camera Mount 20mm(DJI) or 19mm Micro cam
Max Stack Height 25mm
Warrantied Parts All CF and alumi frame parts
Recommended Components
Motor Size 2306/1700kv
ESCs Skystars KO 45amp 4in1 (M3 20x20)
Prop Size HQprop Juicy J40 5.1x4x3
Battery 4S between 1300mAh & 1600mAh
6S between 1100mAh & 1300mAh

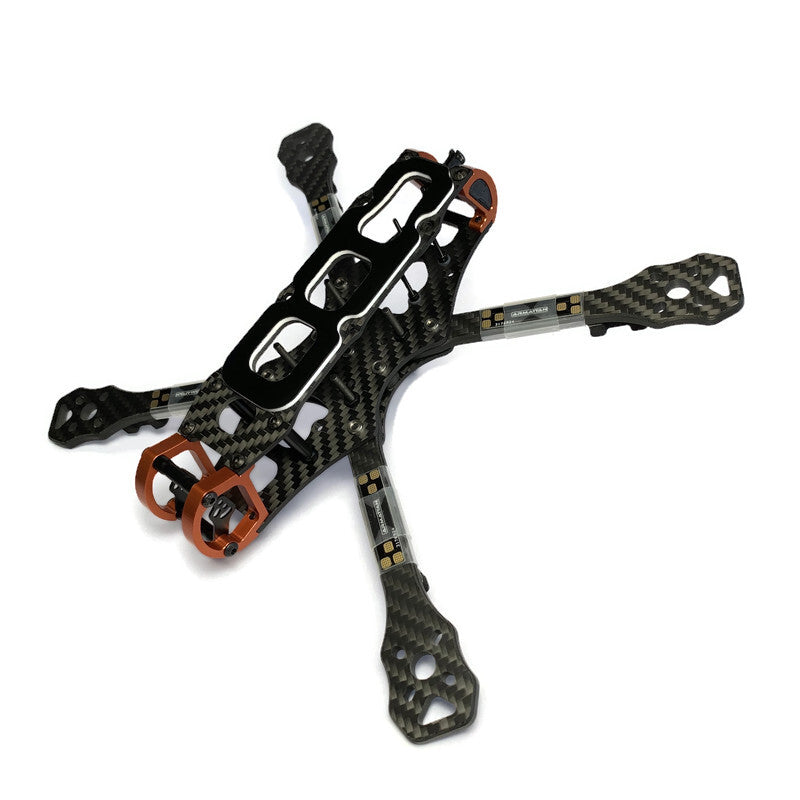

Armattan Beaver

Introducing the Armattan Beaver. This one is three years coming. It's the longest we have ever spent working on a frame. Well, to be frank, the 2020 situation made us put a pause on development for a little while. Nonetheless, this design has taken a very long time and it has gone through many more iterations and prototypes than any other Armattan frame before. The best way to describe what the Beaver is about is probably to look at our design goals.

Strength: This frame needs to be strong enough to be worthy of lifetime warranty. The frames need to be able to take a beating. Thicker arms than any other previous frame, as well as thoughtful crash-protection provisions make the Beaver our strongest design to date.

Noise: Three or four years ago, blackbox readings and tuning were not much of a thing. Things have changed a lot since then. The Beaver is our first five inch design for which a big emphasis on reducing noise reaching the flight controller was devised. This is by far the stiffest frame we have ever made. The top plate is also using additional anchoring points adding stiffness throughout the entire chassis. Easier to tune for newcomers and more satisfying for folks who strive to have the perfect tune.

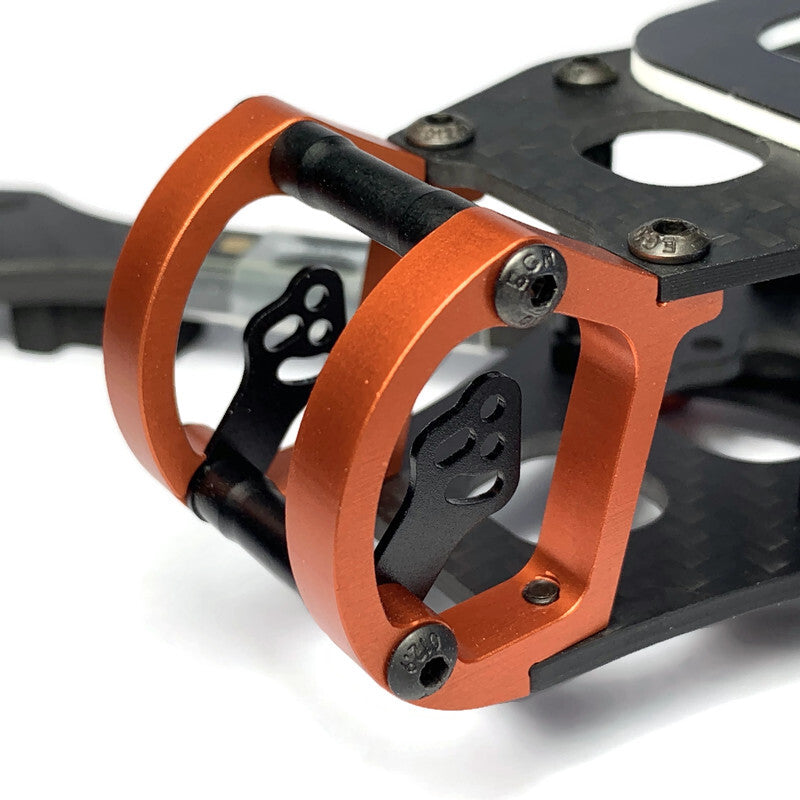

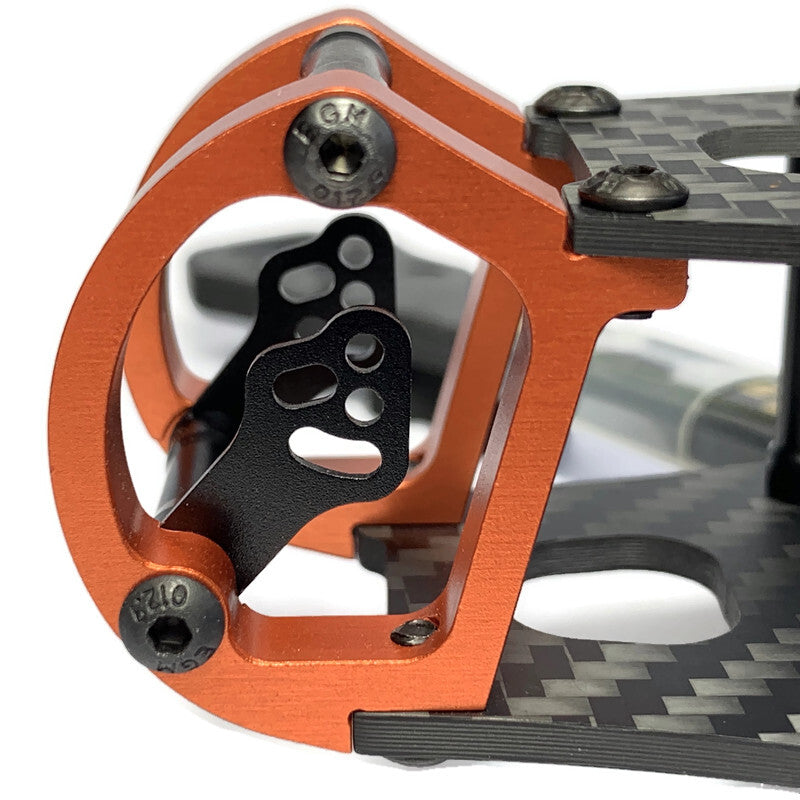

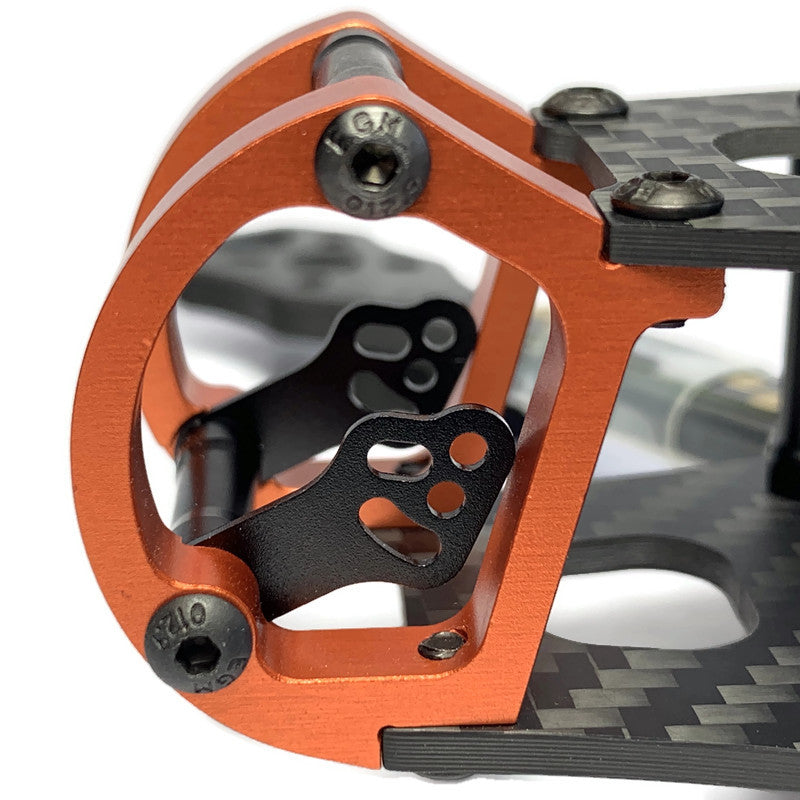

Modern provisions: As always, we try to adapt to new electronics on the market as to provide good building options with a variety of controllers, video links and RC links. The Beaver is our most versatile model to date. Cameras have gotten so small. Large cages seen on our previous models are no longer needed. This model has the smallest and lightest camera cage we have ever used on a design for five inch propellers. This allowed us to better balance the frame strength and weight distribution. This takes us to our next goal.

Weight: Stiffer, stronger, smarter, NOT heavier. 126g. The weight is on par or less than our previous 5 inch frames.

Ease of maintenance: Only one bolt needs to be removed to replace an arm at the field. As for the rest of the build, there's nothing complicated or overly complex to work on. It's a breeze to work on.

Looks: Finally, and always last on the list of priorities, aesthetics. We try to make good looking frames, but function comes before fashion, always. The Beaver is the best frame we've ever made and it looks the part. We chose the classic orange look, reminiscent to the iconic Armattan Chameleon. The Beaver is a completely different beast, however. It's a critical evolution that encompasses our design goals, five years later, in 2022.

Price Point: The Beaver is priced better than all of our previous high-end, freestyle frames. We're checking a lot of boxes here...
